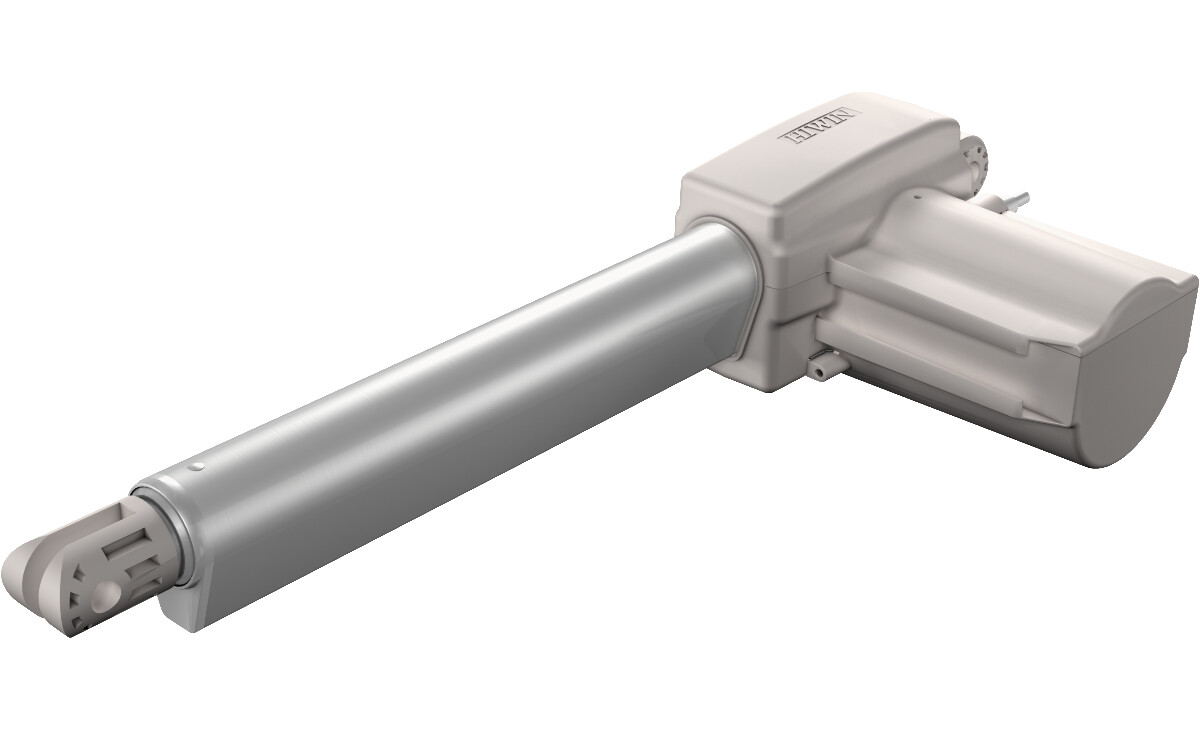

Linear actuators LAN

Heavy load cylinder
17 product(s)
Type Maximum thrust Max. pull Max. holding force Standard stroke S
Speed at zero load

Speed at maximum load

Duty cycle

Maximum current

Hall sensor resolution

LAN5-11-1-100-24-G
8000 4000 6000 100
LAN5-11-1-150-24-G
8000 4000 6000 150
LAN5-11-1-200-24-G
8000 4000 6000 200
LAN5-21-1-100-24-G
6000 4000 5000 100
LAN5-21-1-150-24-G
6000 4000 5000 150
LAN5-21-1-200-24-G
6000 4000 5000 200
LAN5-21-1-250-24-G
6000 4000 5000 250
LAN5-31-1-100-24Q-G
4000 3000 4000 100
LAN5-31-1-150-24Q-G
4000 3000 4000 150
LAN5-31-1-200-24Q-G
4000 3000 4000 200
LAN5-31-1-250-24Q-G
4000 3000 4000 250
LAN5-31-1-300-24Q-G
4000 3000 4000 300
LAN5-41-1-100-24Q-G
3000 2000 1500 100
LAN5-41-1-150-24Q-G
3000 2000 1500 150
LAN5-41-1-200-24Q-G
3000 2000 1500 200
LAN5-41-1-250-24Q-G
3000 2000 1500 250
LAN5-41-1-300-24Q-G
3000 2000 1500 300
