Series CG

Standard series in O-arrangement, optionally with cover strip, for all revised mounting surfaces. The CG ball bearing guide is particularly suitable for single-axis applications due to its high moment load capacity. The available cover strip minimises the installation effort required to close the mounting holes. The optimised lubrication concept also makes the CG series the first choice for short-stroke applications in particular. You can find the right block under the accessories for the respective profile rail or directly under the menu item Blocks. Alternatively, you can configure your CG linear guideway directly in our product configurator. CAD data and technical drawings are also available for download here.
Configurator
31 product(s)
Type
H
W
L
Cdyn
C0
H1

N

B

B1

C

C1

L1

K2

G

M

l

T

T1

H2

H3

Mass

M0X

M0Y

M0Z

CGH15CA
 28 34 58,2 14700 23470
CGH20CA
 30 44 74,9 27100 36680
CGH20HA
 30 44 90,9 32700 47960

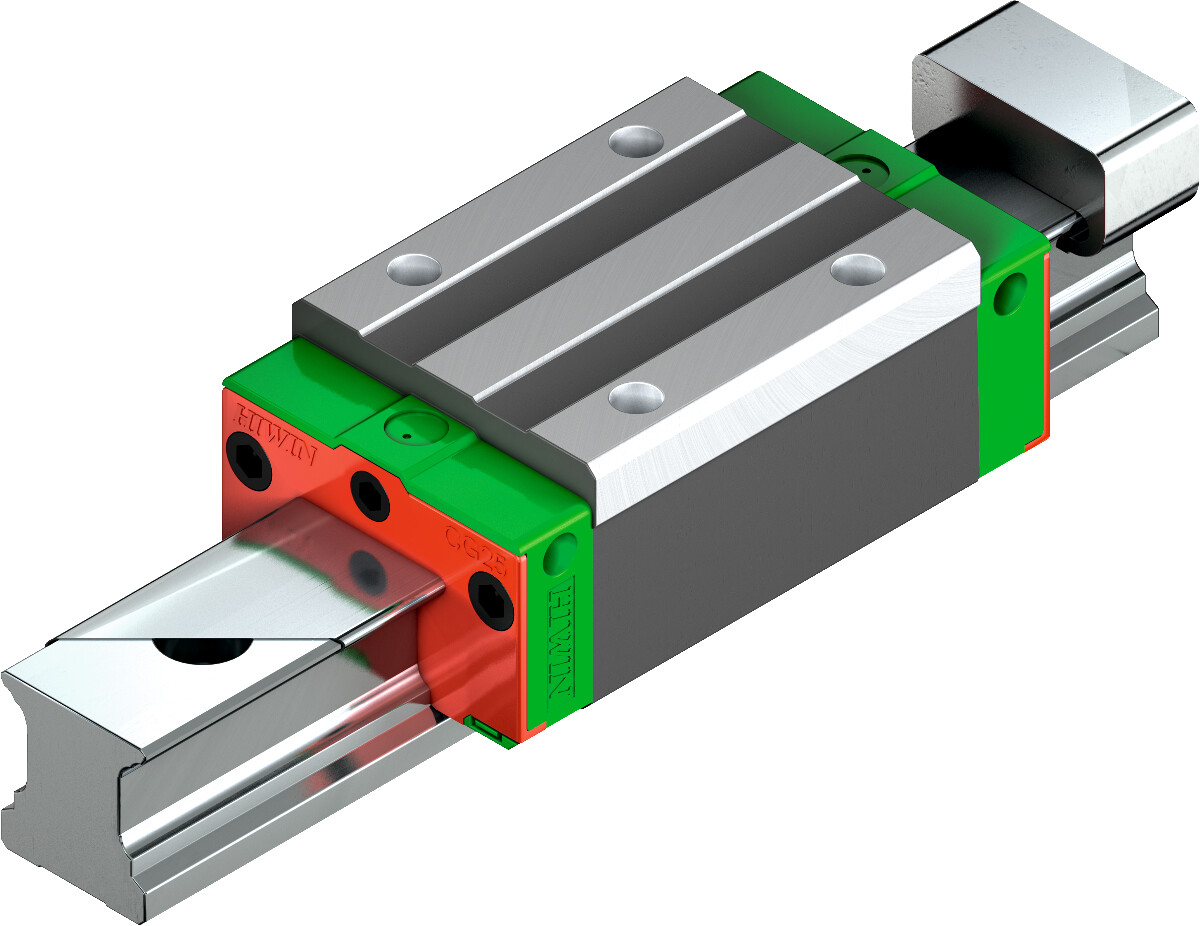

CGH25CA
 40 48 84 34900 52820
CGH25HA
 40 48 101,4 42200 69070
CGH30CA
 45 60 97,4 48500 71870
CGH30HA
 45 60 119,9 58600 93990
CGH35CA
 55 70 111,4 64600 93990
CGH35HA
 55 70 135,8 77900 122770
CGH45CA
 70 86 137,6 103800 146710
CGH45HA
 70 86 174 125300 191850
CGL15CA
 24 34 58,2 14700 23470
CGL25CA
 36 48 84 34900 52820
CGL25HA
 36 48 101,4 42200 69070
CGL30CA
 42 60 97,4 48500 71870
CGL30HA
 42 60 119,9 58600 93990
CGL35CA
 48 70 111,4 64600 93990
CGL35HA
 48 70 135,8 77900 122770
CGL45CA
 60 86 137,6 103800 146710
CGL45HA
 60 86 174 125300 191850

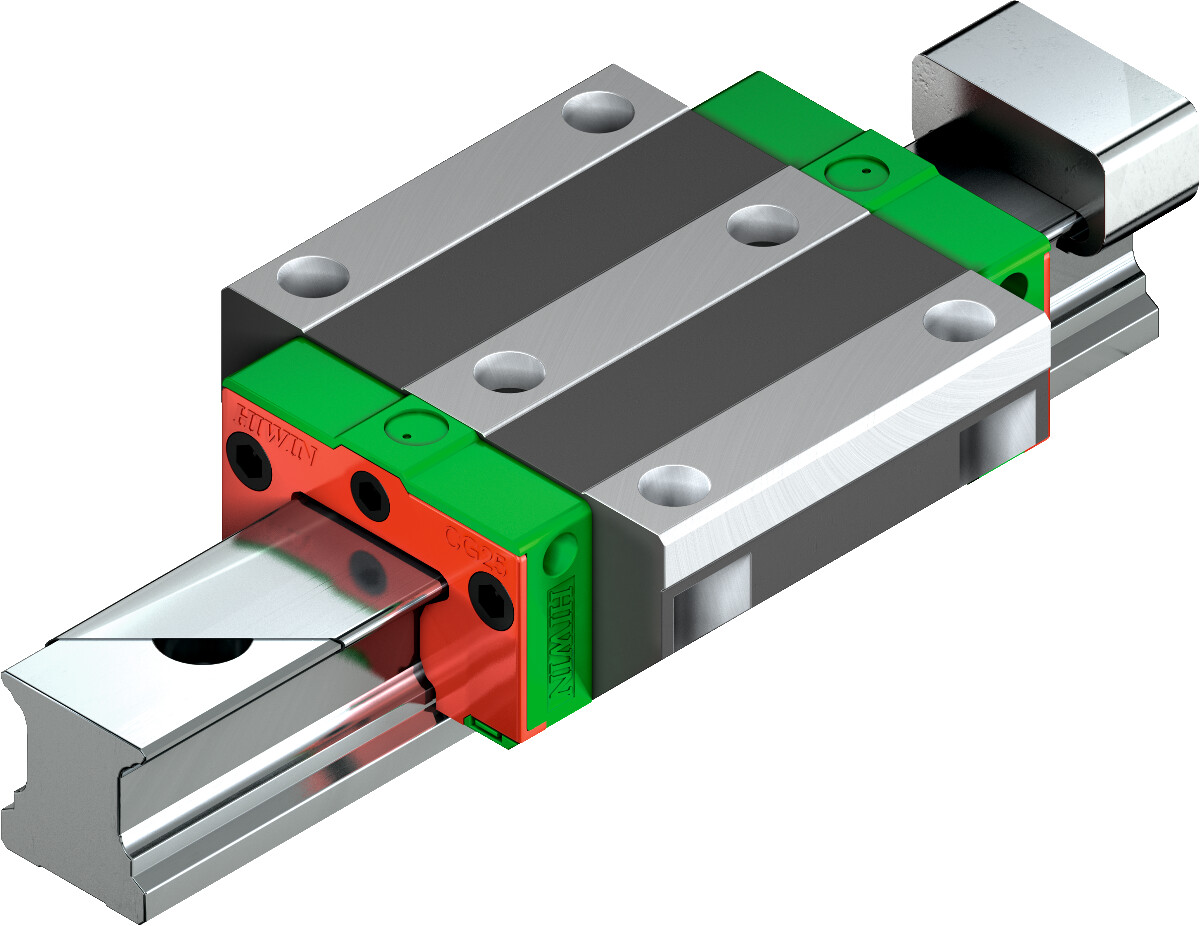

CGW15CC
 24 47 58,2 14700 23470
CGW20CC
 30 63 74,9 27100 36680
CGW20HC
 30 63 90,9 32700 47960
CGW25CC
 36 70 84 34900 52820
CGW25HC
 36 70 101,4 42200 69070
CGW30CC
 42 90 97,4 48500 71870
CGW30HC
 42 90 119,9 58600 93990
CGW35CC
 48 100 111,4 64600 93990
CGW35HC
 48 100 135,8 77900 122770
CGW45CC
 60 120 137,6 103800 146710
CGW45HC
 60 120 174 125300 191850
