Series EG/QE

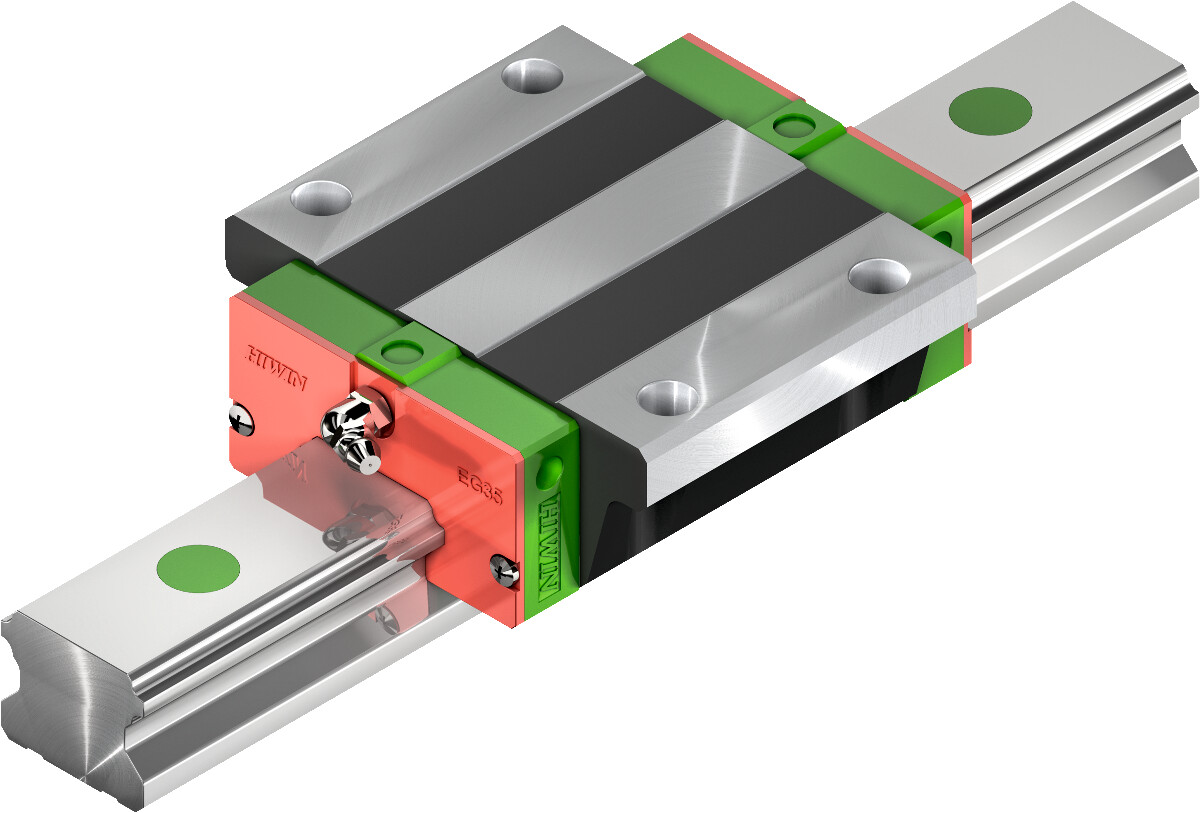

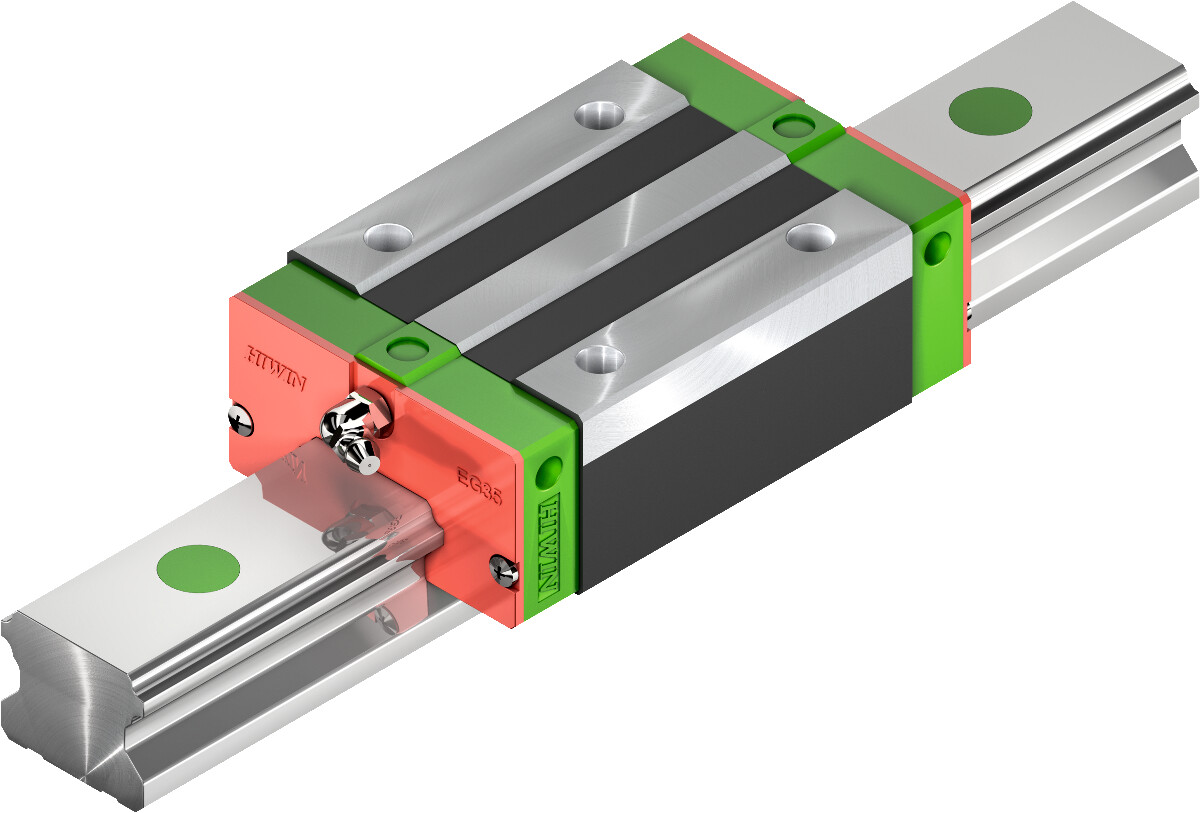

Flat ball bearing guide, especially for applications with limited installation space. Thanks to the 45° arrangement of the ball tracks, the EG/QE series can accommodate loads from all directions equally. With our SynchMotion™ technology (ball chain), the EG series becomes a QE linear guide - for higher travel speeds, longer relubrication intervals and improved synchronuous performance with lower running noise. You can find the right block under the accessories for the respective profile rail or directly under the menu item Blocks. Alternatively, you can configure your EG/QE linear guideway directly in our product configurator. CAD data and technical drawings are also available for download here.
40 product(s)
Type
H
W
L
Cdyn
C0
H1

N

B

B1

C

L1

K1

K2

G

M

l

T

T1

H2

H3

Mass

M0X

M0Y

M0Z

EGH15SA
24 34 40,1 5350 9400
QEH15SA
24 34 40,1 8560 8790
EGH15CA
24 34 56,8 7830 16190
QEH15CA
24 34 56,8 12530 15280
EGH20SA
28 42 50 7230 12740
QEH20SA
28 42 50 11570 12180
EGH20CA
28 42 69,1 10310 21130
QEH20CA
28 42 69,1 16500 20210
EGH25SA
33 48 59,1 11400 19500
QEH25SA
33 48 60,1 18240 18900
EGH25CA
33 48 82,6 16270 32400
QEH25CA
33 48 83,6 26030 31490
EGH30SA
42 60 69,5 16420 28100
QEH30SA
42 60 67,5 26270 27820
EGH30CA
42 60 98,1 23700 47460
QEH30CA
42 60 96,1 37920 46630
EGH35SA
48 70 75 22660 37380
QEH35SA
48 70 76 36390 36430
EGH35CA
48 70 108 33350 64840
QEH35CA
48 70 108 51180 59280
EGW15SC
24 52 40,1 5350 9400
QEW15SC
24 52 40,1 8560 8790
EGW15CC
24 52 56,8 7830 16190
QEW15CC
24 52 56,8 12530 15280
EGW20SC
28 59 50 7230 12740
QEW20SC
28 59 50 11570 12180
EGW20CC
28 59 69,1 10310 21130
QEW20CC
28 59 69,1 16500 20210
EGW25SC
33 73 59,1 11400 19500
QEW25SC
33 73 60,1 18240 18900
EGW25CC
33 73 82,6 16270 32400
QEW25CC
33 73 83,6 26030 31490
EGW30SC
42 90 69,5 16420 28100
QEW30SC
42 90 67,5 26270 27820
EGW30CC
42 90 98,1 23700 47460
QEW30CC
42 90 96,1 37920 46630
EGW35SC
48 100 75 22660 37380
QEW35SC
48 100 76 36390 36430
EGW35CC
48 100 108 33350 64840
QEW35CC
48 100 108 51180 59280
