Series CRG

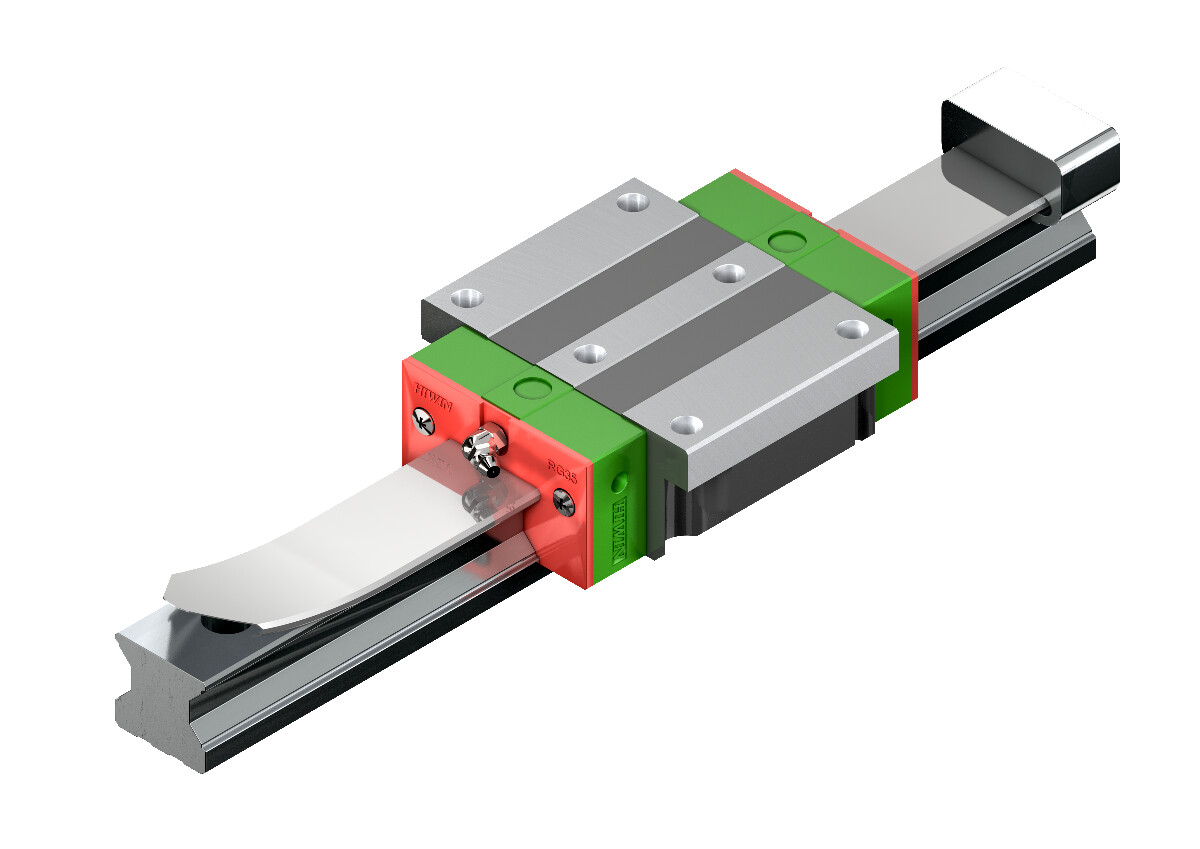

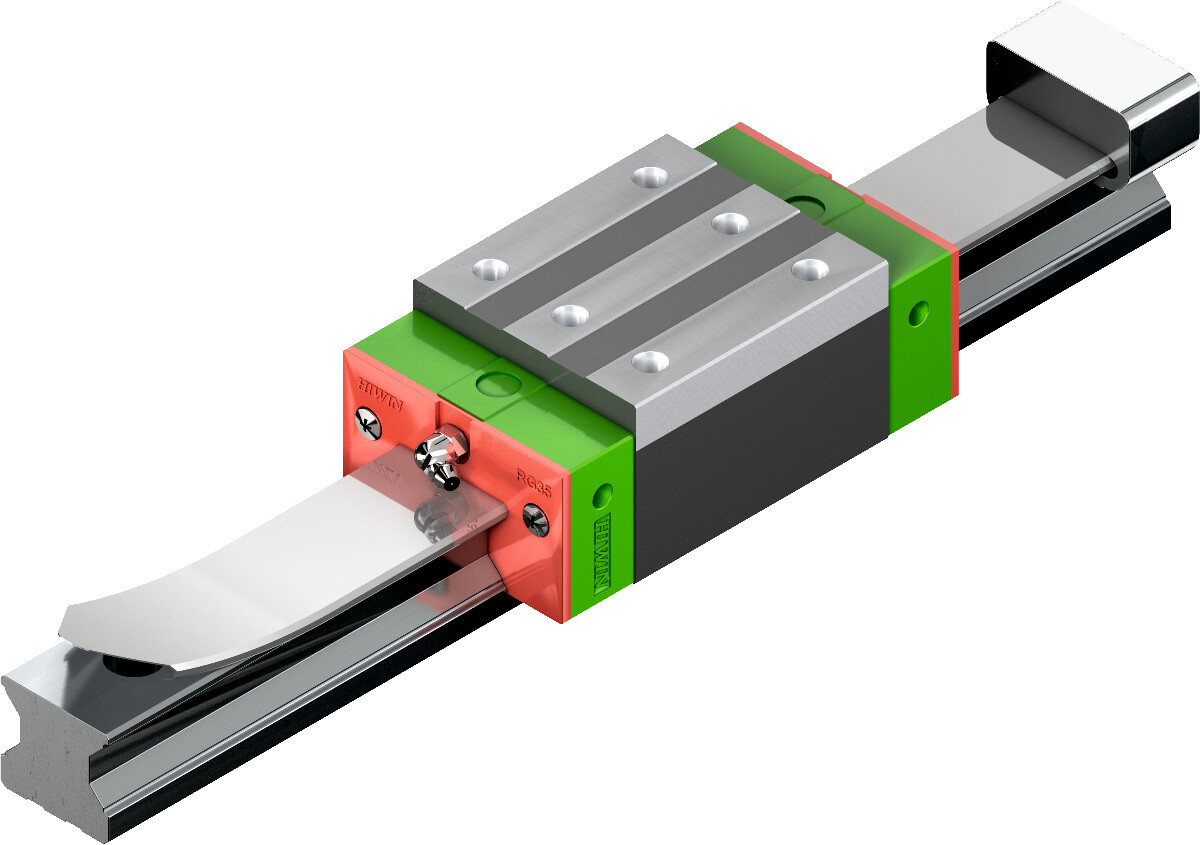

Roller guide with cover strip, for heavy-duty applications with the highest requirements in terms of load capacity and torque load capacity. The available cover strip minimises the installation effort required to close the mounting holes as well as dirt ingress and wear on the sealing lip. The cover strip can be fitted in just a few simple steps thanks to the installation aid. You can find the right block under the accessories for the respective profile rail or directly under the menu item Block. Alternatively, you can also configure your CRG linear guide directly in our product configurator. CAD data and technical drawings are also available for download here.
30 product(s)
Configurator
  • 1(current)
  • 2
Type
H
W
L
Cdyn
C0
H1

N

B

B1

C

C1

L1

K1

K2

G

M

l

T

T1

H2

H3

Mass

M0X

M0Y

M0Z

CRGH15CA
 28 34 68 11.300 24.000
CRGH20CA
 34 44 86 21.300 46.700
CRGH20HA
 34 44 106 26.900 63.000
CRGH25CA
 40 48 97,9 27.700 57.100
CRGH25HA
 40 48 114,4 33.900 73.400
CRGH30CA
 45 60 109,8 39.100 82.100
CRGH30HA
 45 60 131,8 48.100 105.000
CRGH35CA
 55 70 124 57.900 105.200
CRGH35HA
 55 70 151,5 73.100 142.000
CRGH45CA
 70 86 153,2 92.600 178.800
CRGH45HA
 70 86 187 116.000 230.900
CRGH55CA
 80 100 183,7 130.500 252.000
CRGH55HA
 80 100 232 167.800 348.000
CRGH65CA
 90 126 232 213.000 411.600
CRGH65HA
 90 126 295 275.300 572.700
CRGW15CC
 24 47 68 11.300 24.000
CRGW20CC
 30 63 86 21.300 46.700
CRGW20HC
 30 63 106 26.900 63.000
CRGW25CC
 36 70 97,9 27.700 57.100
CRGW25HC
 36 70 114,4 33.900 73.400
