Grease Gun GN-80M with grease pipes set
Type:
Grease Gun GN-80M with grease pipes set
Article number:
20-000332

Technical data
Connection thread G 1/8
Working pressure 150 bar
Conveying volume per stroke 0,6 cm3
Weight 0,52 kg
Scope
Grease gun Grease gun hand lever, 250 mm × 90 mm

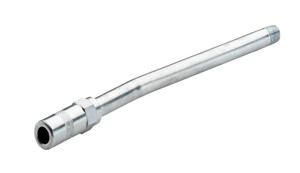

Nozzle tube Angled, 115 mm
Nozzle tube Angled, 175 mm
Nozzle tube Straight, 140 mm
Lubricating nozzles 4 units
Name Article number Description
HIWIN G01;Grease for heavy load conditio 20-000335 Schmierfett
HIWIN G02;Grease for cleanroom enviromen 20-000338 Schmierfett
HIWIN G03;Grease for cleanroom+high spee 20-000341 Schmierfett
HIWIN G04;Grease for high speed conditio 20-000344 Schmierfett
HIWIN G05;Grease for general purpose 20-000347 Schmierfett
Linear guideway – grease lubrication via lubricating nipple
In the following video, you can see how a lubricating nipple adapter can be mounted on the carriage of a linear guideway. This reduces the effort for lubrication to a minimum. Lubricants basically reduce wear, protect the component from contamination and thus extend the service life. The lubricant is a constructional element and should therefore be taken into consideration when designing a machine. Like any rolling bearing, HIWIN linear guideways also require an adequate supply of lubricant. Both grease and oil lubrication are possible.
