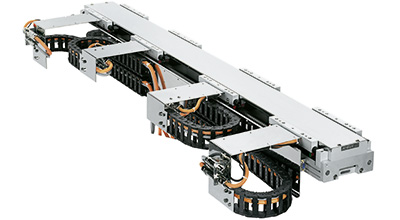

Designed as a single axis, our multiforcer enables flexible handling in placement machines.
Due to its single-axis design with four independent travel blocks, it has been possible to significantly reduce the costs for placement machines. Previously, it had been designed with four single axes. Distances are measured by a cost-effective incremental positioning measuring system that is integrated into the linear guideway. The stainless steel cover also protects the axis from becoming soiled.
Requirements:
- Cost savings through single axis
- 4 independent travel blocks
- High cycle rates
HIWIN components:
Go directly to the installed HIWIN components here and use the CAD configurator or download the respective CAD model right away:
- LMX precision axis
- Linear motors LMSA
- PG linear guideway with MAGIC-PG distance measuring system
- Stainless steel cover
